KM 24740 Dual Crank Speaker/Lighting Stand

KM 24740 Dual Crank Speaker/Lighting Stand

Brand: Konig & Meyer
Product Code: KM 24740
Availability:
Please Call
Price: $1,629.00

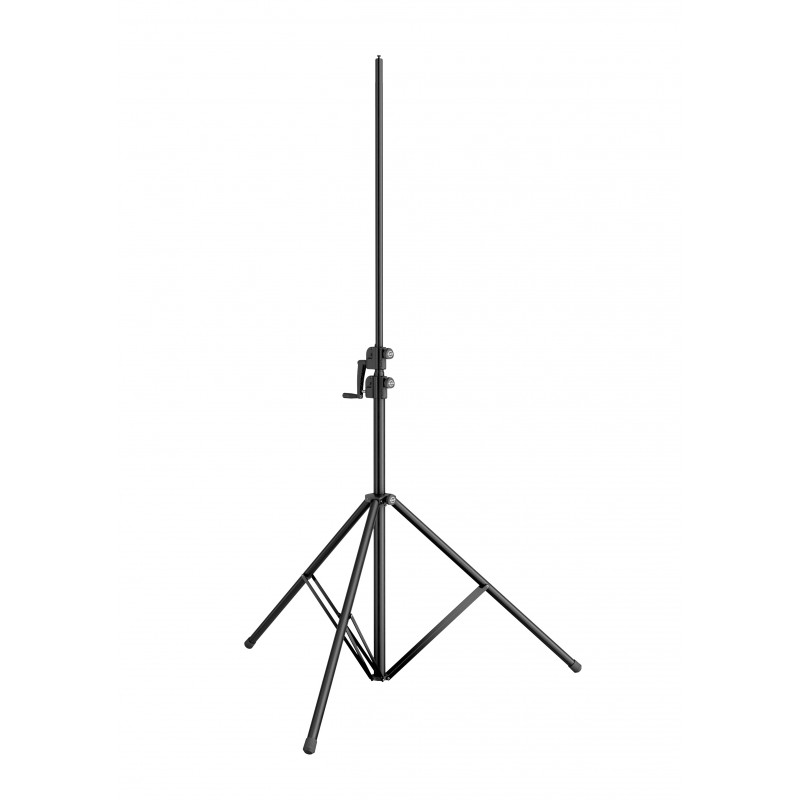

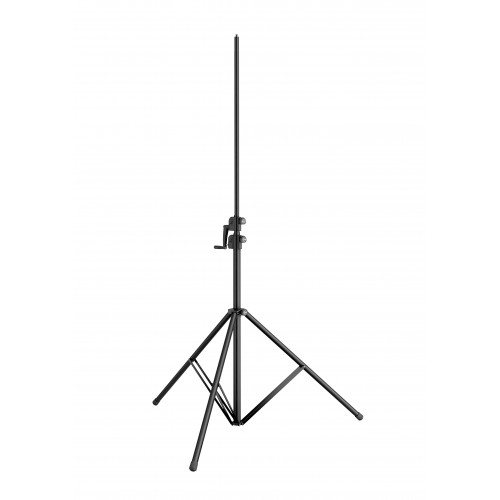

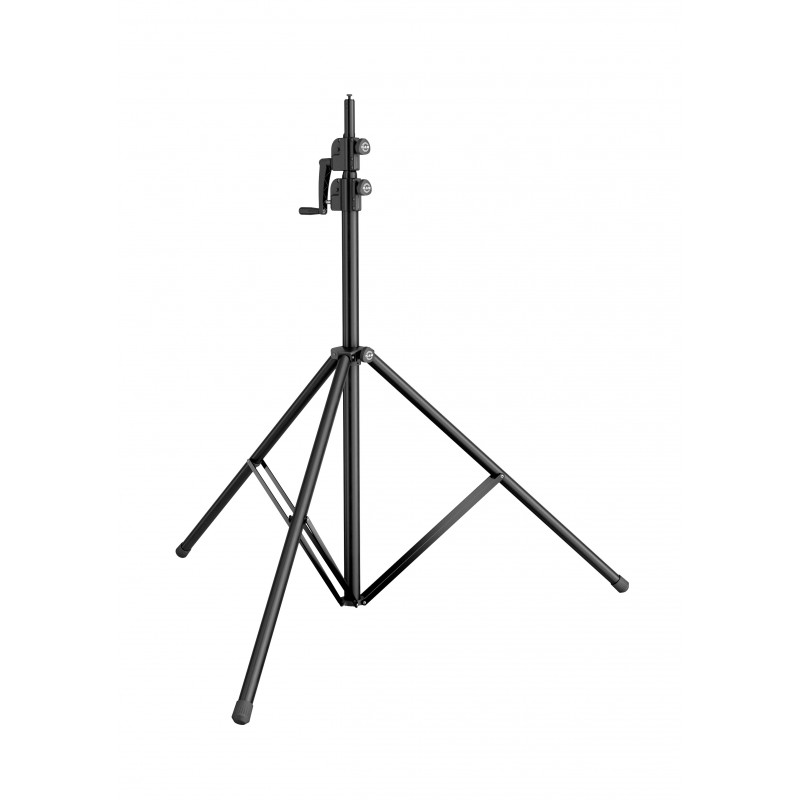

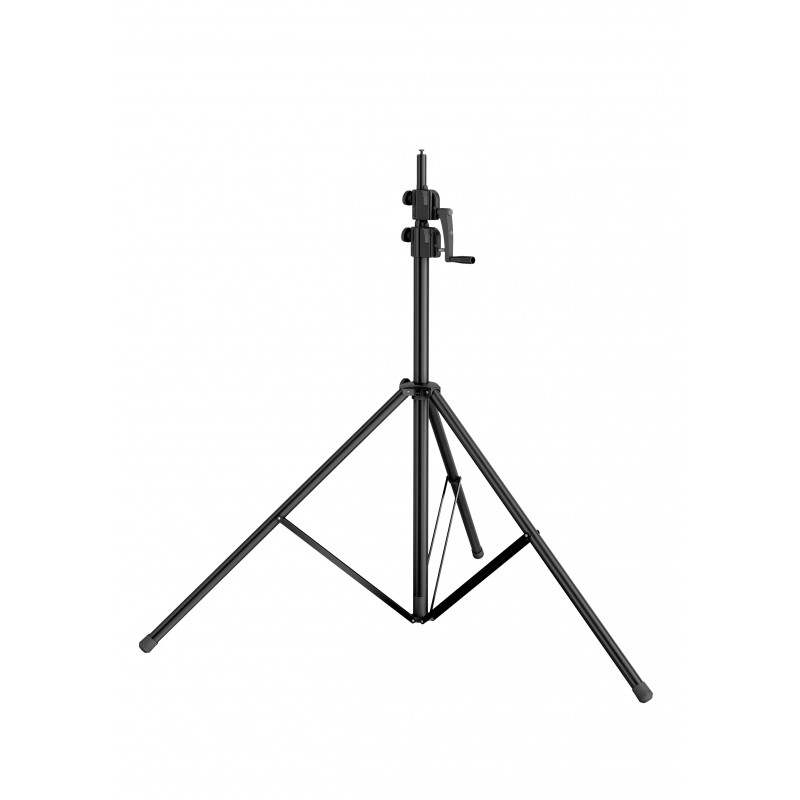

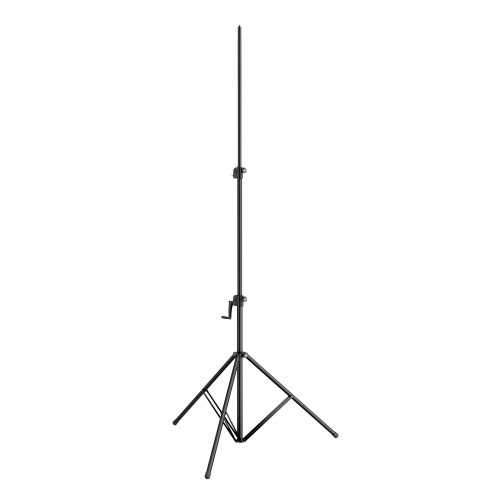

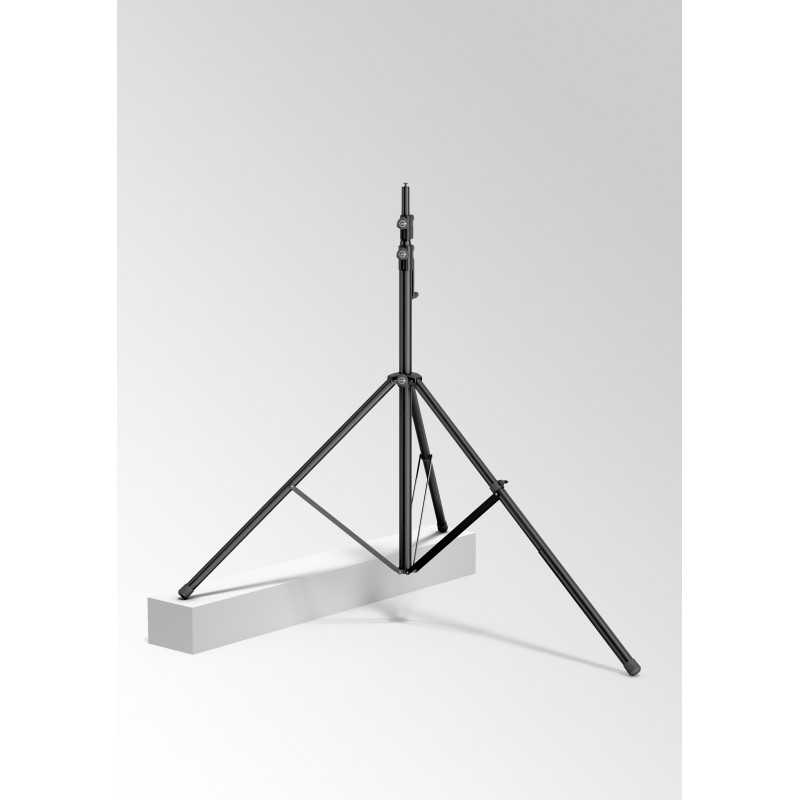

Professional light and speaker stand with an innovative dual crank mechanism. The 3-piece tube combination covers a range of use from 1,715 to 4,000 mm height. The load is raised and lowered in a user-friendly, safe and reliable way via two separate crank gears. The integrated »Auto Lock« system prevents sudden lowering of the load by automatic locking. The crank can also be removed to prevent unauthorised use. Since no cables are used, the stand is completely maintenance-free. The focus of this robust stand is above all on stability and steadiness, so that a load capacity of 40 kg is easily realised. The compact transport dimensions are 1,695 x 200 x 165 mm and the weight is around 14.2 kg. The integrated M10 threaded bush can be used to mount additional crossbars or individual spotlights directly.









Technical Details
Base diameter: 2000 mm

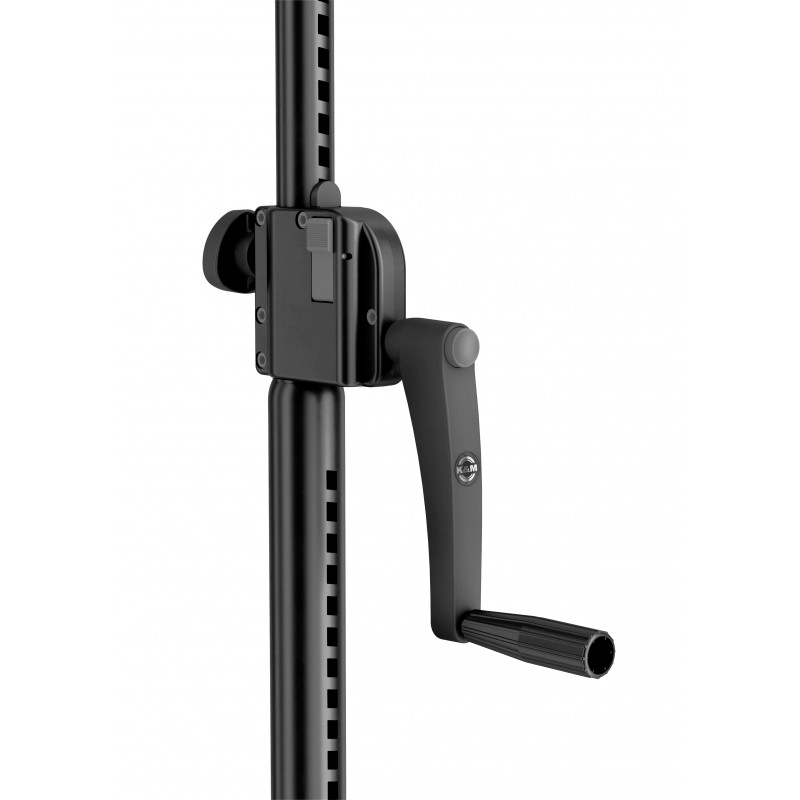

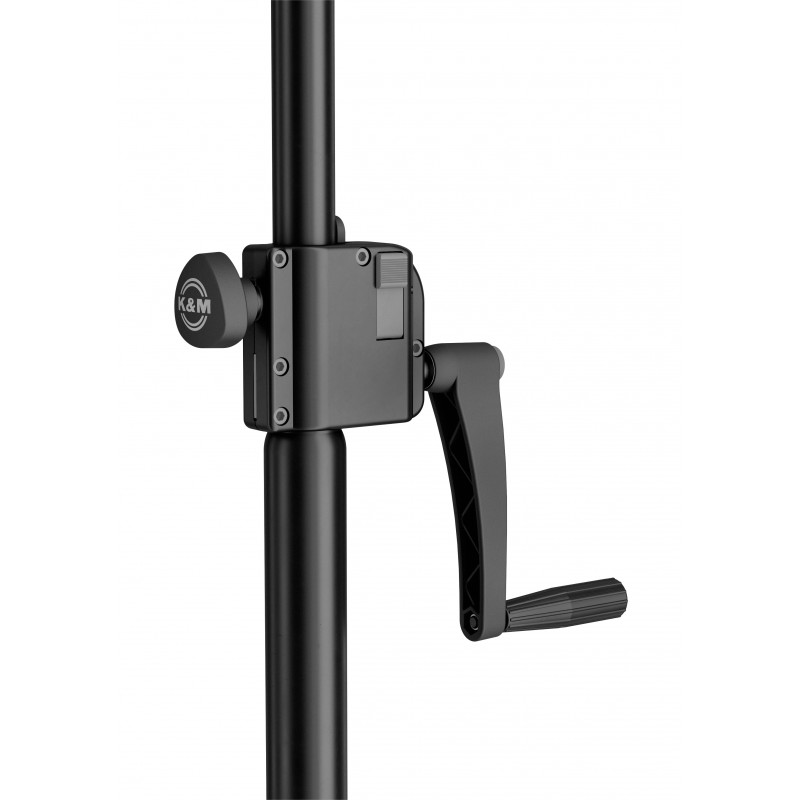

Height adjustment: hand crank with push-button system and locking screw

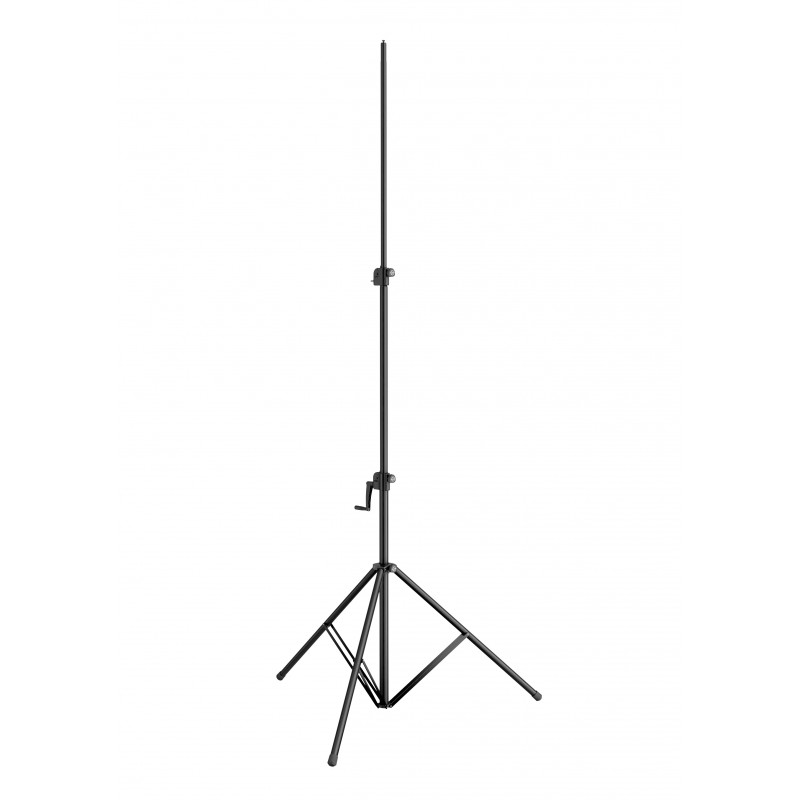

Height: from 1,715 to 4,000 mm
Leg construction: tube legs with double cross braces
Material: aluminum
Max. load capacity: 40 kg * With centric loading, on a horizontal surface and without lateral forces (wind, shocks etc.)
Number of legs: 3
Product Category: Starline
Rod combination: 3-piece folding design
Size when folded: 1,695 x 200 x 165 mm
Special features: steel extension tubes; push-button system and hand crank avoid uncontrolled reverse motion; locking screw provides additional safety; zinc die-cast connecting parts

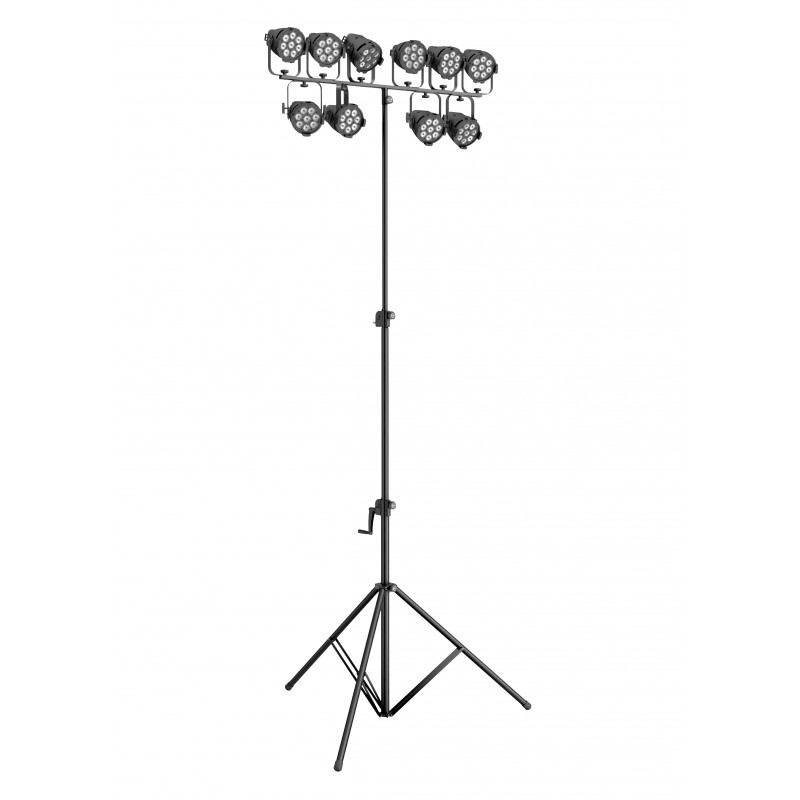

Tube end(s): diameter 35 mm, integrated threaded bush M10 for crossbars
Type: black
Weight: 14.2 kg
